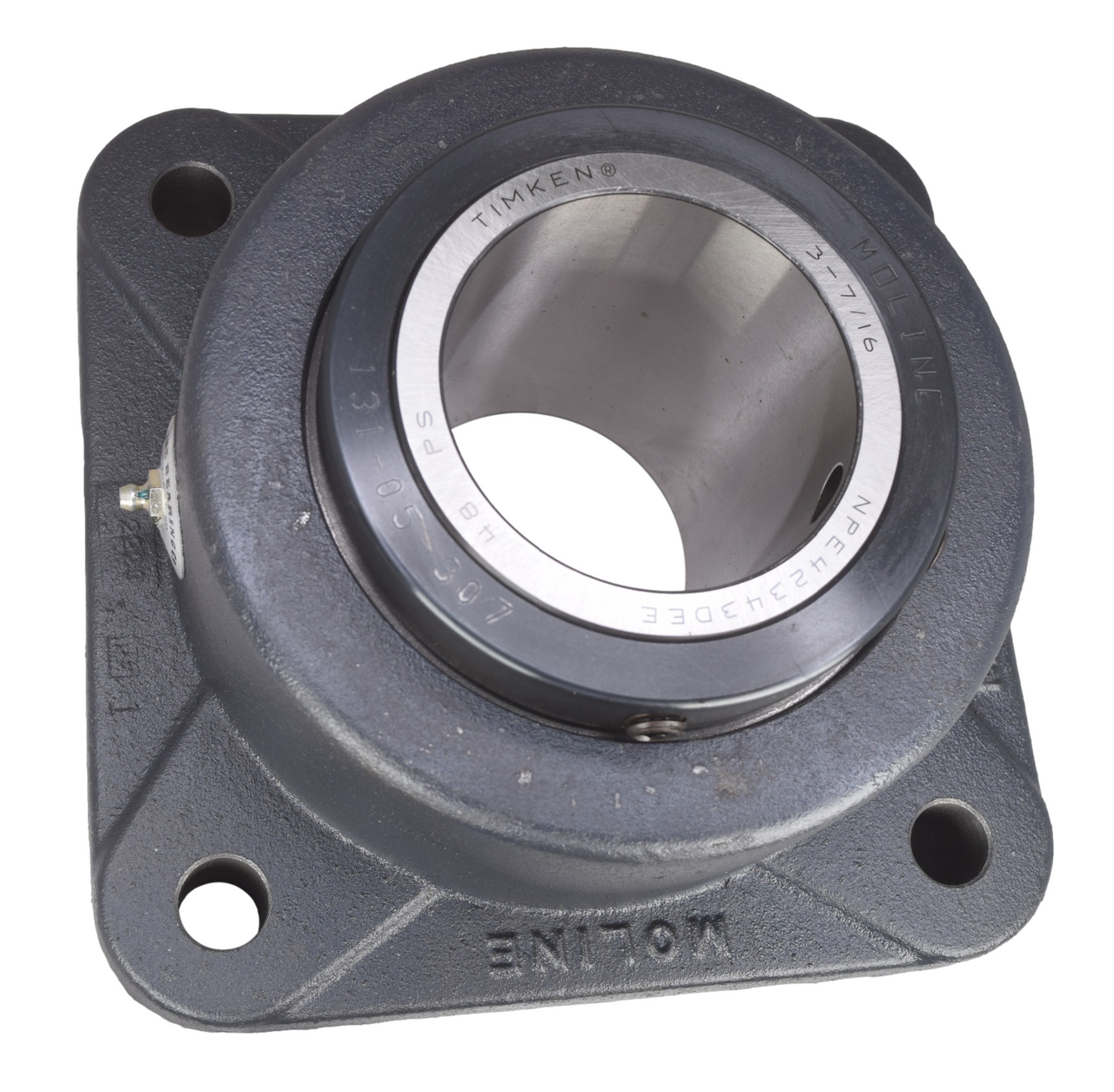

3-7/16" Type-E Four Bolt Flange Bearing


Product Description

These flange bearings are heavy duty with double taper roller bearings inside for the best performance in radial and thrust loads. Equal to Dodge Type E flange series, these heavy duty flange bearings are made by Moline Bearing Co. in the USA.

Housings are made of high-quality gray iron. The bearings are genuine Timken tapered roller bearings consisting of vacuum degassed steel which gives rollers and races added life and provides superior load and speed characteristics. The drive collar on each end of inner race comes with 2 headless set screws spaced 65 apart, locking the bearing to the shaft. This design allows for radial and thrust load capacities. This bearings comes completely assembled, adjusted, sealed and pre-lubricated at the factory. The bearings come standard with V-Guard™nitrile and teflon contact seal for extreme dirt and wet environments.

Basic Dimensions
Shaft Size Bolt Distance Overall Length Overall Thickness Bolt Size
3-7/16"  7"  9-1/4"  4-1/2"  3/4"
Click Below for Full Dimensionstypeeflangebasic.jpg

Interchangeable with:
Timken: E-4BF-TRB-3-7/16
Dodge: 023114 F4B-E-307R
Sealmaster: RPB-307
Browning: FBE-920-3-7/16
Royersford: 20-05-0307
Moline: 19311307
