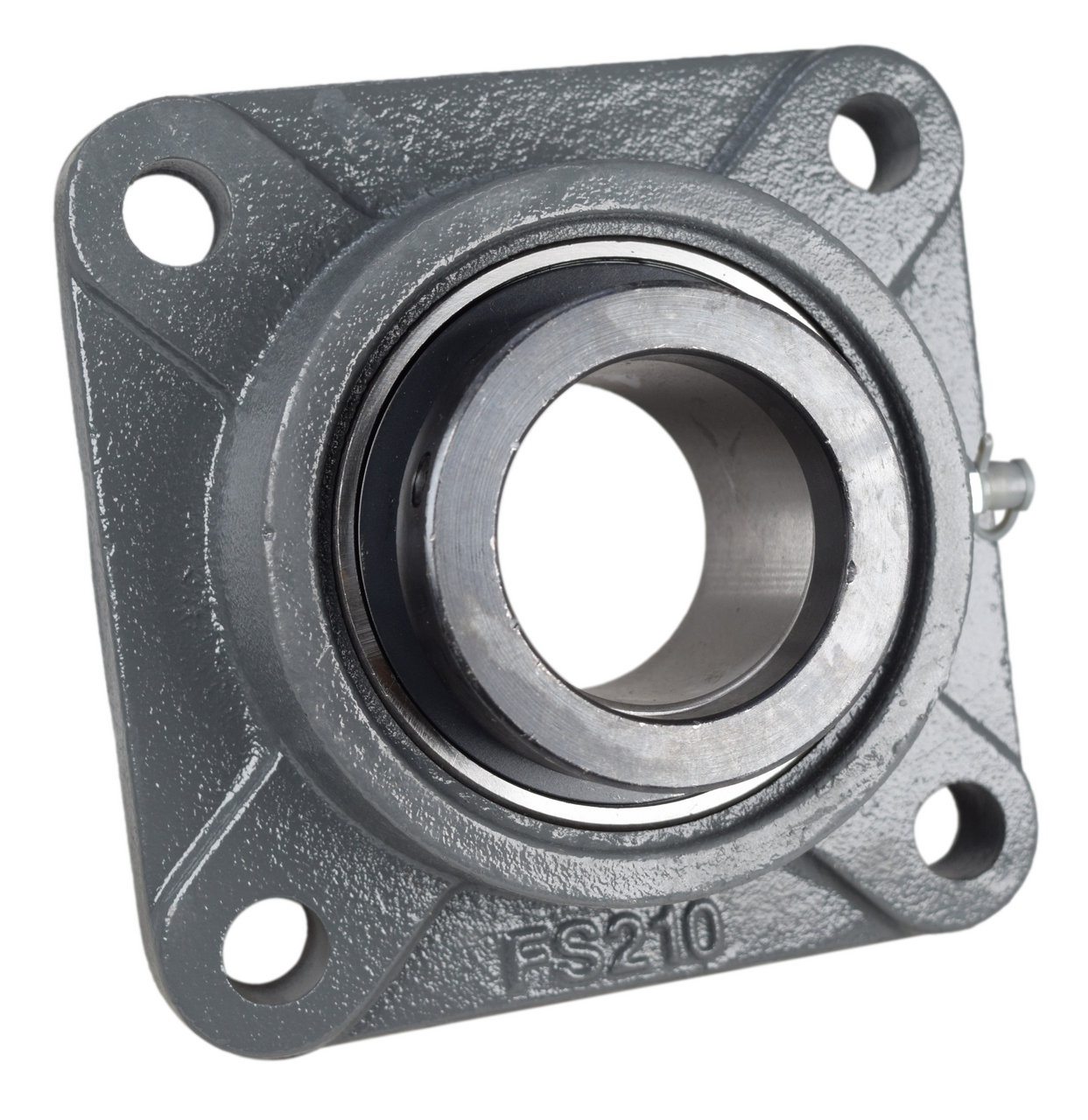

Description - 1-15/16" Four Bolt Flange Bearing W/ Lock Collar HCFS210-31
High quality 1-15/16" four bolt flange bearing. The bearing has a wide inner ring with a eccentric locking (cam lock) collar for attaching to the shaft. Housing is cast iron with a grease zerk for re-lubing the bearing.
|
Basic Dimensions |
||||
|
Shaft Size |
Bolt Distance |
Overall Length |
Overall Thickness |
Bolt Hole Size |
|
1-15/16" |
4.37" |
5.63" |
2.60" |
0.63" |
Click Above for Full Dimensions
INTERCHANGE:
Peer: HCFS210-31
AMI: UGSLF210-31
Browning: VF4E-231
Dodge: P4B-SXR-115
FAFNIR: RCJ-1-15/16
Hub City: -
IPTCI: NANF210-31
Link Belt: F3Y231N
NTN: UELFU210-115T
SKF: FY-1-15/16-WM
Seal Master: RF-31E & VF-31E
