Description - 3/4" Closed Style Double Wide Linear Ball Bearing Unit SSWA12LUU TWA12WUU
3/4" closed style double wide linear ball bearing unit. Used for high accuracy systems and any any application where smooth linear motion is needed. This unit is twice a long as a standard unit for more strength and stability.

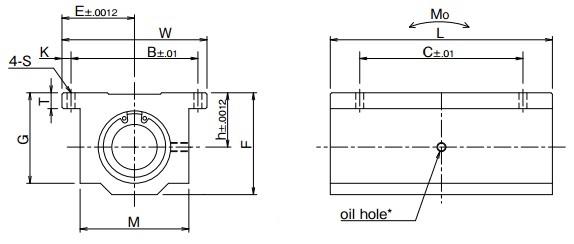

Technical Data:
| Part Number | Dimensions (Inches) | ||||||||||||
| Shaft Size | h | E | W | L | F | T | G | M | B | C | K | S | |
| SSWA12LUU | 3/4 | 0.94 | 1.38 | 2.75 | 4.50 | 1.75 | 0.31 | 1.56 | 1.88 | 2.38 | 3.50 | 0.19 | 0.19 |
| Load Rating (Lbs.) | |
| Dynamic | Static |
| 750 | 1,180 |
