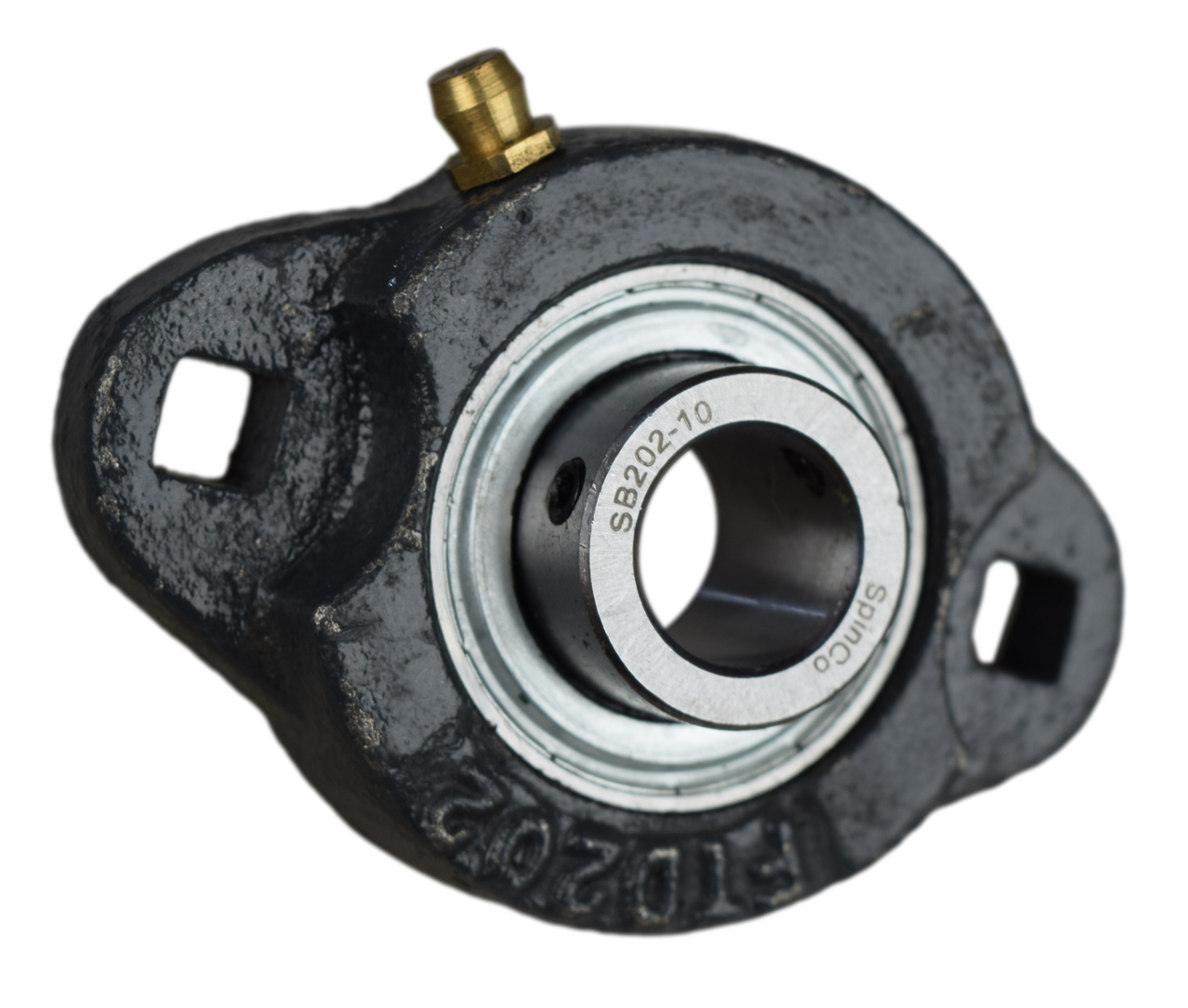

Description - 5/8" Ductile Iron Two Bolt Flange Bearing SBFTD202-10G
High quality light duty 5/8" two bolt flange bearing. The bearing has a narrow inner ring with two set screws for attaching to the shaft. Housing is ductile iron with square bolt holse and a grease zerk for re-lubing the bearing.
|
Basic Dimensions |
||||
|
Shaft Size |
Bolt Distance |
Overall Length |
Overall Width |
Overall Thickness |
|
5/8" |
2.52" |
3.19" |
2.20" |
0.99" |
Click Above for Full Dimensions
Interchanges with
Peer: FHSFX202-10G
AMI: BFX202-10
Browning: VF2S-010M
Dodge: LFT-SC-010
FAFNIR: GSFTD-5/8
Hub City: FB110/160-5/8
IPTCI: SBLF202-10GH-4
SealMaster: LFT-10
