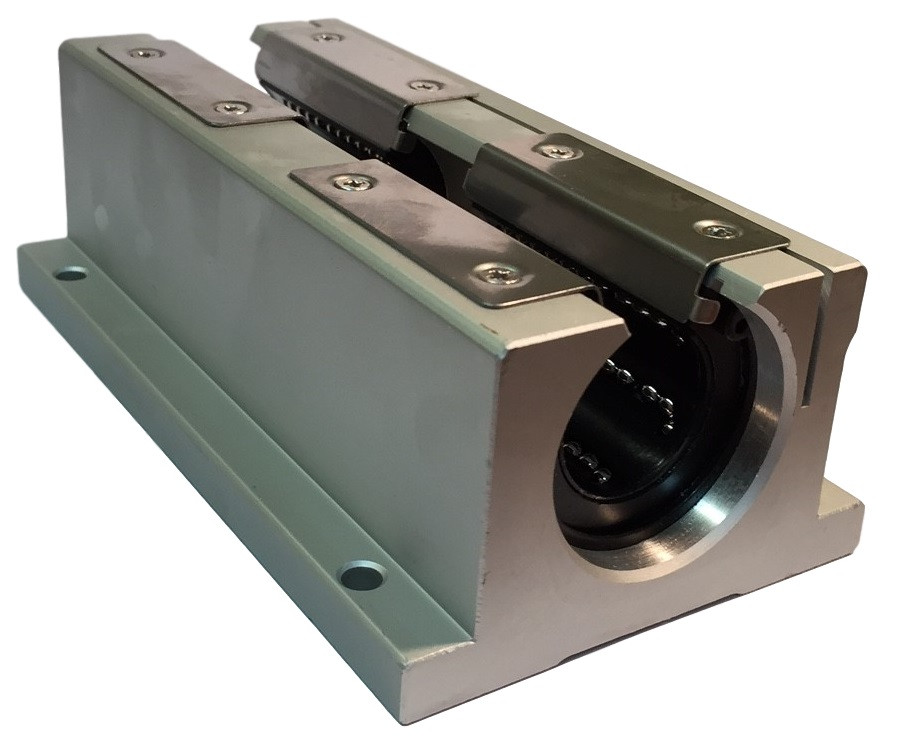

Description - 5/8" Open Style Double Wide Linear Ball Bearing Unit SSWD10LUU TWD10WUU
5/8" open style double wide linear ball bearing unit. Used for high accuracy systems and any any application where smooth linear motion is needed. This unit is twice a long as a standard unit for more strength and stability.
Technical Data:
| Part # | Dimensions (Inches) | |||||||||||||
| Shaft Size | h | E | W | L | F | T | G | M | h1 | B | C | K | S | |
| SSWD10LUU | 5/8 | 0.88 | 1.25 | 2.50 | 4.00 | 1.40 | 0.28 | 0.88 | 1.06 | 0.32 | 2.13 | 3.00 | 0.19 | 0.19 |
| Load Rating (Lbs.) | |
| Dynamic | Static |
| 640 | 1000 |
